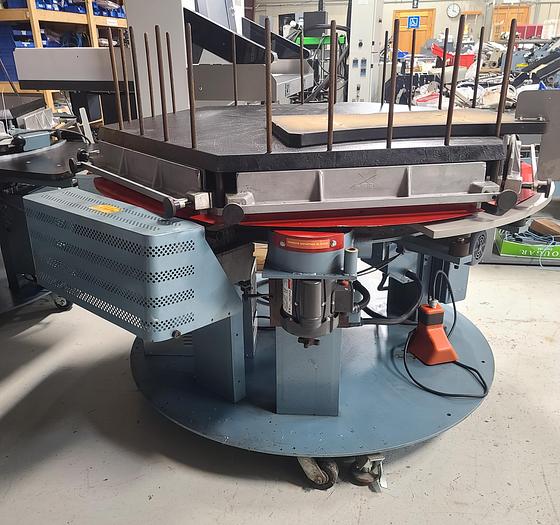

Brackett Circular Padder 19" with Chiller, 1997

Brackett Circular Padder 19" with Chiller, 1997

$15,000 (USD)


Brackett Circular Padder 19" with Chiller & Roughing Assembly & Conveyor

Serial #089 6755

Model: CPREB


Serial Number089 6755
Stock Number2715
CapacityDesigned to handle any thickness from two sheets min. to 1" max. standard optional up to 3" Work length from 3" min. to 19"
Glue PotDigital Temperature Display with controller and 7 day timer. Variable temperature setting: 250°-400°F (120°-205°C). Capacity: 8 lbs.
SpeedsMachine Speeds variable to 3,400 units per hour. Speed control is located on the control box
ProductionNormal production is 1,800 padded strips per hour
Main Drive1/2 HP permanent magnet DC drive motor with solid state controls for speed adjustment.
Electrical20 amps at 115v, 50/60 hz, 1 Phase. 15 amps at 220v 50/60 hz, 1 Phase
Roughing AssemblyMotor driven edge rougher. Aids preparation of difficult-to-bind materials, such as coated stock. For any product benefiting from greater glue applications and penetration. 220/240V only.
Pad CoolerPermits faster cooling (and set-up) of padded surfaces when high production is required or for pads thicker than one-inch.
Nip JawsAllows for variation in pad thickness when drop leaf carbon sets are being padded
Cut Down JawsPocket height is reduced to assist in feeding short materials - minimum height of three-inches
Thick Work Clamp JawsAllows padding of materials up to 3-inches thick
Conveyor8 foot long belted conveyor
Unique id20220328DNC0896755
