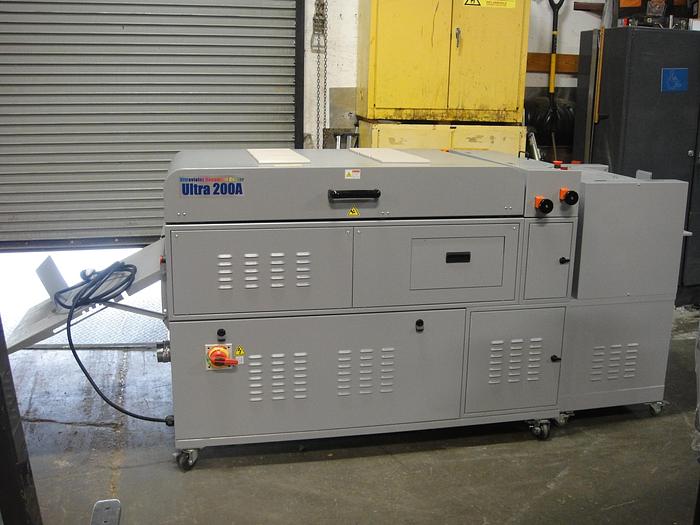

Duplo UV 200A Coater with Feeder
No longer available
Duplo UV 200A Coater with Feeder
$18,500 (USD)
Description
Duplo UV 200A Coater with Feeder
Serial #983A031404900
Power Consumption (including IR) 4.6 KW
Dimensions: 70" L x 42" D x 49" H weight: 1,067 Lbs.
Speed Up to 66 feet per minute
Max 20” x 20” (Max. paper length of 28” with optional extended tray- feeder capacity will be limited to 3”)
Min 8.5” x 11”
Dimensions: 21" x 31" x 46" Weight: 225 Lbs.___
Specifications
Condition | Used |
Stock Number | 2024 |
Coating Speed | 36 - 66 feet per minute |
Selectable Speeds | 36/46/56/66 feet per minute |
Paper Thickness | 120 - 350 gsm |
Sheet Size | Max 20” x 28” Min 8.5” x 11” |
3 Coating Rollers | Metering, Application, Pressure |
Detection Functions | Double sheet detector |
Warm Up Time | UV lamp 90 seconds |
UV Lamp Power | 150W per square inch |
Auto Cleaning | Yes |
Conveyor Length | 56.70" |
Roller Gap Setting by 0.1 mm gaps | Simple manual adjustment for application and pressure rollers |
Control Panel | Simple keypad, programming and adjustments done through Intelligent Control System |
Standard Functions | UV oil purging, priming, self-diagnostic tool, power save |
Standard Features | SF-200 Suction Feeder, IR heater, Hand feed tray |
Power Supply | Single phase, 208 - 240V 60Hz 29A |
Noise Emission | 69.6 dB(A) |
Stacker Capacity | 7.5” or 70.5 lbs. |
Feed Process | Top feeding air suction belt |
Counters | Total, batch |
Power | 115/230V 50/60Hz 1.9A |
Unique id | 20190412DNC983A031404900 |
