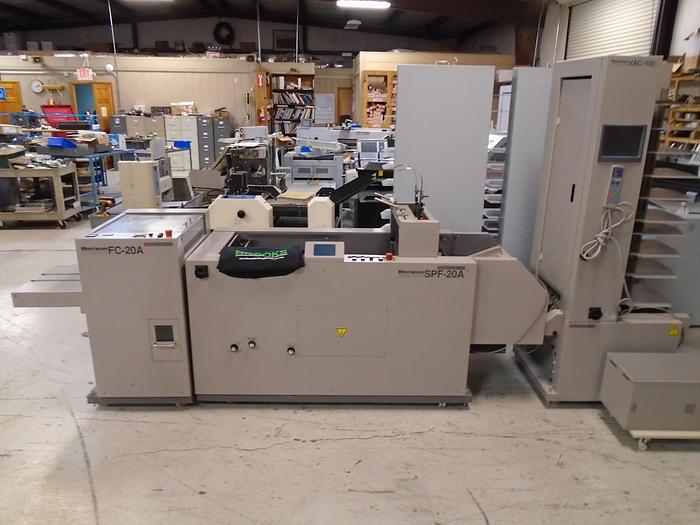

Horizon SPF 20 A Stitch & Fold with 1 Tower

Horizon SPF 20 A Stitch & Fold with 1 Tower

$18,000 (USD)

orCall 704-936-9049

Description

Horizon SPF-20A Stitch & Fold Serial #003057 FC-20A    Serial #011061 SPF-20A Stitch & fold Application Corner/Side/Top Stitching Saddlestitching. Min./Max. Sheet Sizes 5” x 7” min. to 14” x 16.75” max. 4.75” x 7” min. to 14” x 20” max. Maximum Thickness Up to .25” (Up to 3⁄8" with optional head) Up to 24 sheets of 50 lb. offset. Production Speed* Up to 3,600 sets/hour. Up to 3,600 booklets/hour. Power Requirement/Consumption 220 V AC, 60 HZ, single or 3-Phase / 450 W, 5 amps. Weight/Dimensions 1,034 lbs., 1,080 lbs.(SPF-20A) / 78" L x 29" W x 44" H. Features Automatic set-up on SPF-20A; variable speed; integrated hand-feed; two Hohner stitching heads standard; knife fold with dual set of fold rollers; stitch-head skew adjustment; adjustable fold plate; air-assist jogging; external adjustments on the fly. Trimming Mechanism Shear-action scissor system (self-sharpening). Cutting Dimensions Back to front edge 3.3” to 9.9”. Min./Max. Trimmed Booklet Size 3.3” x 4.75” to 9.9” x 14”. Maximum Trim 6” Cutting Thickness 48 sheets of 50 lb. offset. Production Speed* Up to 3,600 booklets per hour. Power Requirement/Consumption 220 V AC, 60 HZ, single or 3-Phase / 200 W, 5 amps. Weight/Dimensions 507 lbs., 529 lbs.(FC-20A) / 24" L x 29" W x 42" H. Features Automated set-up on FC-20A; 25" variable speed exit conveyor; air-blast trim removal into slide-out scrap drawer; easy blade removal.

Specifications

ConditionUsed
Stock Number2406
Unique id20201001DNC011061
