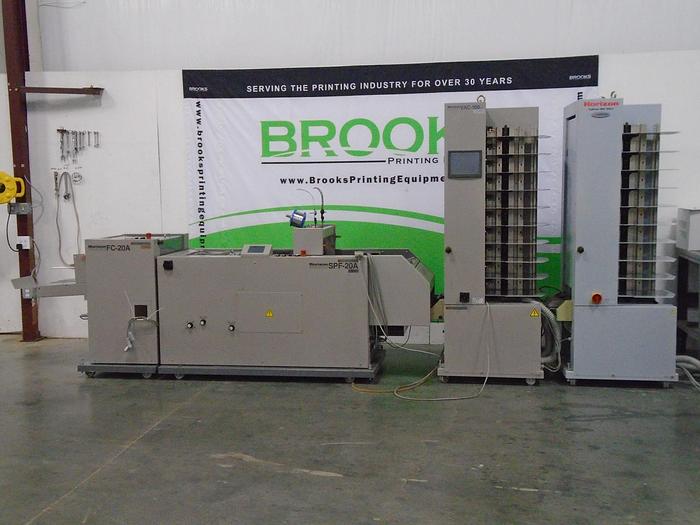

Horizon SPF-20A Stitch Fold & Trim with 1 Tower, Video
No longer available
Horizon SPF-20A Stitch Fold & Trim with 1 Tower, Video
$28,000 (USD)
Description
Horizon SPF-20A Stitch/Fold & Trim with 1 Tower Serial #120020 FC-20A Serial #043011 SPF-20A Stitch & Fold
Specifications
| Manufacturer | Horizon |
| Model | SPF-20A |
| Condition | Used |
| Serial Number | 120020 |
| Stock Number | 2418 |
| Application | Corner/Side/Top Stitching Saddlestitching |
| Min./Max. Sheet Sizes | 5” x 7” min. to 14” x 16.75” max 4.75” x 7” min. to 14” x 20” max. |
| Maximum Thickness | Up to .25” (Up to 3⁄8" with optional head) Up to 24 sheets of 50 lb. offset. |
| Production Speed | Up to 3,600 sets/hour Up to 3,600 booklets/hour Up to 3,600 sets/hour Up to 3,600 booklets/hour |
| Power Requirements | 220 V AC, 60 HZ, single or 3-Phase / 450 W, 5 amps |
| Dimensions | (SPF-20A) 78" L x 29" W x 44" H |
| Weight | 1,034 lbs. |
| Features | Automatic set-up on SPF-20A; variable speed; integrated hand-feed; Two Hohner stitching heads standard; knife fold with dual set of fold rollers; stitch-head skew adjustment; adjustable fold plate; air-assist jogging; external adjustments on the fly |
| Trimming Mechanism | Shear-action scissor system (self-sharpening) |
| Cutting Dimensions Back to front edge | 3.3” to 9.9”. |
| Maximum Trim | 6" |
| Cutting Thickness | 48 sheets of 50 lb. offset |
| Production Speed | Up to 3,600 booklets per hour |
| Power Requirement | 220 V AC, 60 HZ, single or 3-Phase / 200 W, 5 amps |
| Dimensions | 24" L x 29" W x 42" H |
| Weight | 507 lbs. |
