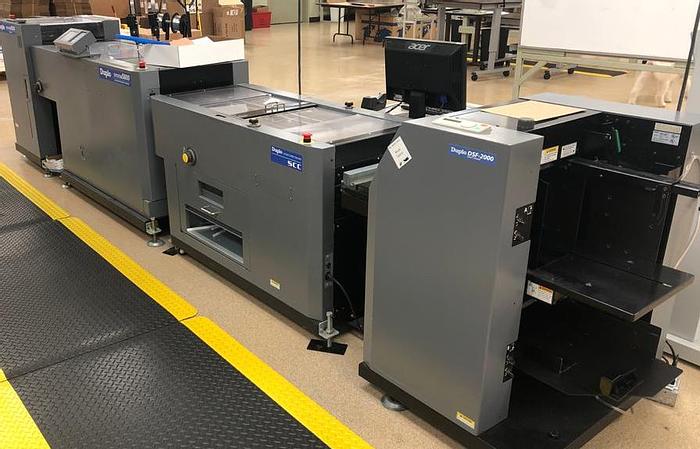

Duplo 5000 with DSF, In line SCC
No longer available
Duplo 5000 with DSF, In line SCC
$18,000 (USD)
Description
Duplo 5000 with DSF, In line SCC
Serial #050400886
Count: 0311202
Specifications
| Manufacturer | Duplo |
| Model | 5000 |
| Condition | Used |
| Serial Number | 050400886 DSF -2000 S/N 041001309 SCC S/N0706005r78 |
| Stock Number | 2471 |
| Corner/Side/Top Stitching Application | Sheet Size: 4.72” x 5.52” Min. to Max 13.82” x 14.41” |
| Paper Capacity | Up to 30 sheet |
| Signature Bookletmaking Application | Sheet Size: 4.72” x 6.7” Min. to Max.14” x 20” |
| Paper Capacity | Up to 25 sheets |
| Speed | Up to 5,000 sets per hour |
| Detections | Wire draw detection |
| Number of Stitcher Heads | 1-4 (2 standard) Hohner heads |
| Stitch Positions | Saddle, corner, side, none (fold only) |
| Programmable Memory Settings | 12 |
| Automatic Functions | Stitcher heads, back jogger, side guides, stitch stopper, fold stopper, fold-back stopper positions, small booklet adjustments, fold roller gap, conveyance roller position, center reference, disengage the operator side stitching head when corner stitching |
| Electrical | 120V 60Hz 6.5A |
| Dimensions | 64” L x 28” W x 40” H |
| Weight | 908 lbs |
| Other Features | LCD touch panel and ten-key pad; DBM-500T settings adjustable from DBM-500 control panel; accepts setby-set and sheet-by-sheet; jam clearance accessibility; side and corner stitch catch tray; knife folder with four adjustable fold rollers and insert attachment for inserting loose sheets into booklets; adjustable control panel, external fold skew adjustment |
| Connecting Devices | DC-10/60 Collator, DBM-500T Trimmer |
| Document Sheet Feeder DSF-2000 | Paper Size: 5.8” x 7.8” Min. to Max. 12.6” x 17.72” |
| Paper Detection | Double-feed, misfeed, paper jam, bin empty, upper door open/close, bridge door open/close, End of Set Mark Recognition, Optical Mark Recognition (OMR) |
| Speed | Up to 200 (8.5” x 11”) sheets per minute (varies upon downstream unit) |
| Optical Mark Recognition | Standard feature, upper and lower side of sheet, count and check functions, search for last sheet function |
| Connecting Devices | DBM-120SxS Bookletmaker + DBM-120T Trimmer, DC-10/60 + DBM-500 Bookletmaker + DBM-500T Trimmer |
| Electrical | 120V AC 1.8A or 220-240V 0.9A |
| Dimensions | 44” L x 30” W x 40” H Weight: 300 lbs. |
| Slitter-Cutter-Creaser | SCC. | Part of Duplo system 5000 range, the SCC is an optional unit designed specifically for the digital color user. |
| Power Consumption | 120W, 1.4 - 0.6A |
| Dimensions | Min 1,320(W)×610(D)×810(H) mm Max 1,320(W)×735(D)×810(H) mm |
| Weight | 187kg |
| Unique id | 20210127DNC050400886 |
