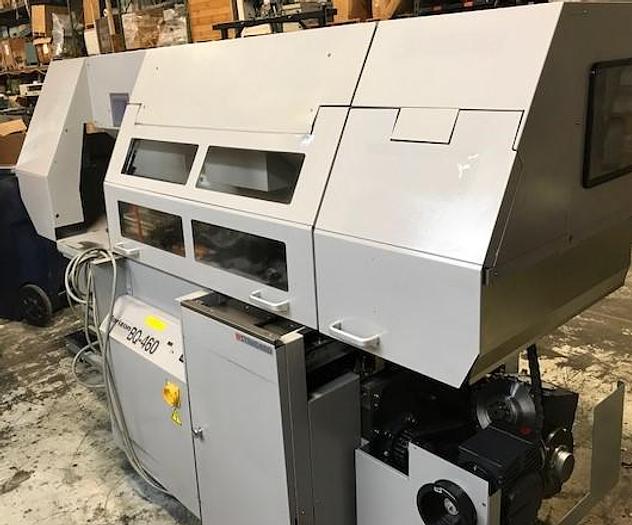

Horizon BQ 460 Perfect Binder

Horizon BQ 460 Perfect Binder

$20,000 (USD)

orCall 704-936-9049

Description

Horizon BQ 460 Perfect Binder

Serial #035001

Specifications

ModelBQ 460
ConditionUsed
Serial Number035001
Stock Number2489
Number of Clamps4
Book Block Size (Top-Bottom x Fore-Edge)Max. 12.59" x 12.59" Min. 4.34"x 5.71"
Binding Thickness0.04" to 2.16"
Cover Size (Top-Bottom x Fore-Edge)Max. 12.59" x 25.59" Min. 5.71" x 10.24" (9.06") (9.06") requires small size spring
Cover Weight RangeNormal Paper 82 gsm (22 lbs.) or up Coated Paper 105 to 302 gsm (27 to 78 lbs.)
Cover Pile HeightMax. 200 mm (7.87") (CF-460V)
Production SpeedMax. 1,350 cycles/hr
Voltage / Frequency3-Phase 200 V, 50 / 60 Hz 3-Phase 220 V, 50 / 60 Hz
Rated Current220 V, 50 Hz, 23.3 A / 60 Hz, 27.2 A 400 V, 50 Hz, 9.8 A / 60 Hz, 11.8 A
Power Consumption200 V, 50 Hz, 4.0 kW / 60 Hz, 4.4 kW 220 V, 50 Hz, 4.1 kW / 60 Hz, 6.0 kW
Heat Output9,650 kJ (2,310 kcal)
Motors2.2 kW x 1 / 0.75 kW x 1 / 0.4 kW x 1 / 0.2 kW x 1
Heater2.4 kW x 1
Dimensions118" W x 63.9" D x 62.6" H
Weight3,308 lbs.
Unique id20210223DNC035001
