Challenge Titan 265, 2000, Video
No longer available
Challenge Titan 265, 2000, Video
$10,500 (USD)
Description

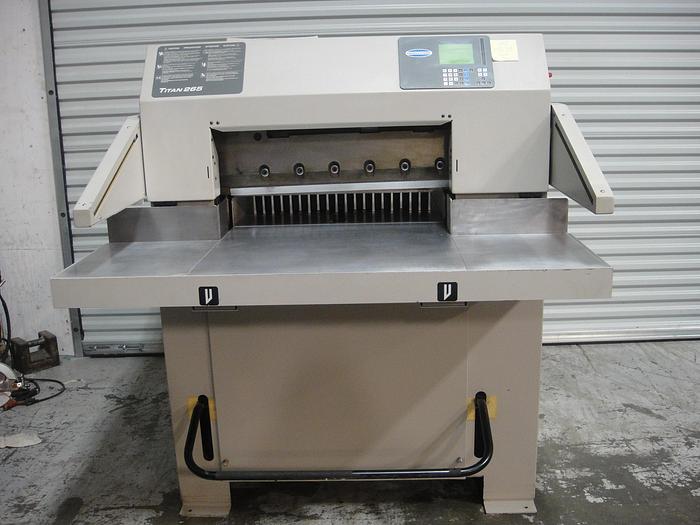

Challenge Titan 265, 2000
Serial #001277
Specifications
Manufacturer | Challenge |
Model | Titan 265 |
Year | 2000 |
Condition | Used |
Serial Number | 001277 |
Stock Number | 2534 |
Maximum Cutting Width | 26 1/2" |
Minimum Cut: without false clamp plate | 5/8" with false clamp plate:1-7/8" |
Maximum Cut Depth | 28" |
Clamp Opening: without false clamp plate | 4" with False Clamp Plate:3-3/4" |
Clamp Force Minimum | 1,470 lbs. Maximum 4,000 lbs. |
Clamping Method | Hydraulic & Power Soft Clamp |
Backgauge Control | Power |
Knife Cycle Speed | 26 cuts/min |
Dimensions | Table Space: in front of knife 24-1/2" |
Overall Height | 60-1/3" |
Overall Width | 54" |
Overall Length | 70-1/3" |
Side Tables | 13-1/2” x 16” |
Minimum opening required thru door | 54" |
Table, treadle & light beam off | 31" |
Weight | 1,780lbs. |
Electrical | Titan 265 Motor: 5 H.P., 208/230 Volts, 60 Hz, 3 Phase, AC, 25 Amps. Service size 30 Amps |
Unique id | 20210430DNC001277 |
