Horizon SPF-9 & FC 9 Booklet Maker, Video
No longer available
Horizon SPF-9 & FC 9 Booklet Maker, Video
$4,500 (USD)
Description
Horizon SPF-9 & FC-9 Booklet Maker

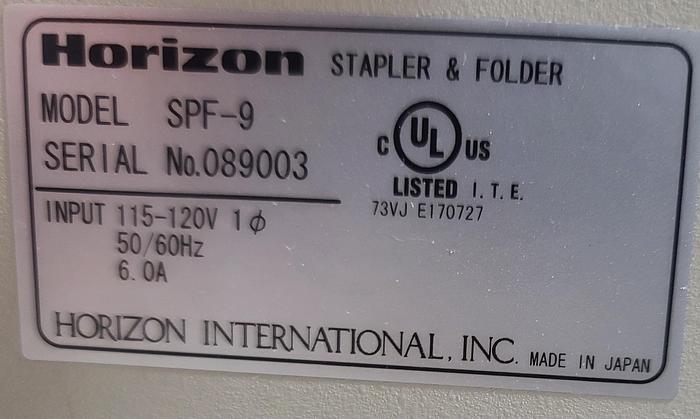

SPF-9 Serial #089003

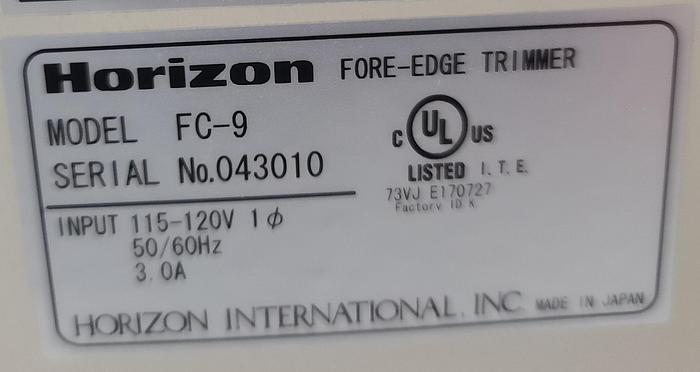

FC-9 Serial #043010
Specifications
| Manufacturer | Horizon |
| Model | SPF-9 & FC-9 |
| Condition | Used |
| Serial Number | 089003 |
| Stock Number | 2734 |
| SPF-9 Specifications | Function: Stapling and Folding, Side Stapling, Corner Stapling, Folding |
| Sheet Size | Stapling and Folding : A3, A4 (11" x 17", 8.5" x 11"); Side Stapling/Corner Stapling : A4 (8.5" x 11") |
| Sheet Weight | 64 gsm ~ 130 gsm (16# Bond to 36# Bond) |
| Stapling and Folding Thickness | up to 20 sheets of 64 gsm / up to 10 sheets of 130 gsm (14 sheets of 20# Bond) |
| Side Stapling Thickness | up to 20 sheets of 130 gsm (36# Bond) |
| Corner Stapling Thickness | up to 20 sheets of 130 gsm (36# Bond) |
| Production Speed | 2,000 booklets / hour |
| Stacker Pile Height | Stapling and Folding : 40 booklets (A3 - 64 gsm, 10 sheets) Side Stapling : 100 booklets (A4 - 64 gsm, 10 sheets) |
| Staple Distance | (4.7") (Fixed) |
| Staple | Cartridge type, 5,000 staples |
| Sensor | No Staple, Sheet Jam, Misfeed on Collator |
| Counter | 4 digits (No memory) |
| Machine Size | 48.8" W x 24.4" D x 31.3" H |
| Machine Weight | 339.2 lb |
| Electrical | 115-120 V 60 Hz |
| FC-9 Specifications | Sheet Size: A3, A5, 11" x 17", 5.5" x 8.5" |
| Trimmed Size | Maximum: 12.7" x 8.8" Minimum: 7" x 4.2" |
| Trimming Thickness | 64 gsm 40 sheets (16# Bond : 40 sheets) |
| Trimming Width | Maximum 0.5" |
| Production Speed | 2,000 books/hour |
| Detector | Sheet Jam, Knife Lock, full Trimming |
| Counter | Total Counter |
| Machine Size | 17.6" W x 24.5" D x 31.4" H |
| Machine Weight | 221 lbs. |
| Electrical | 115-120 V 60 Hz |
| Unique id | 20220412DNC089003 |
