Rena T-650 Multi-Side Inline Tabber, Video

Rena T-650 Multi-Side Inline Tabber, Video

$9,500 (USD)

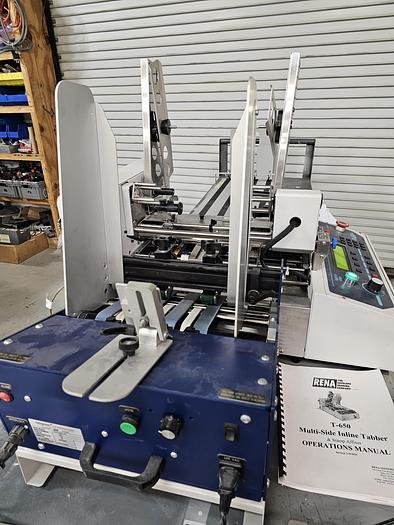

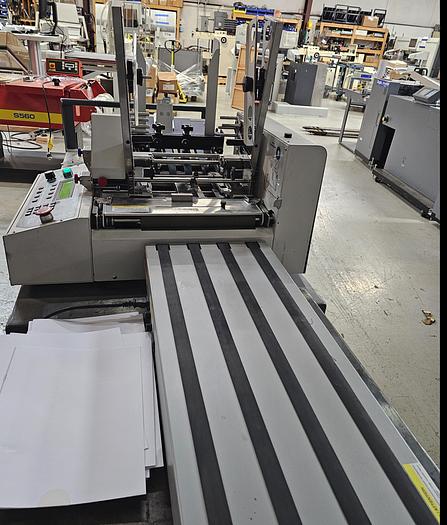

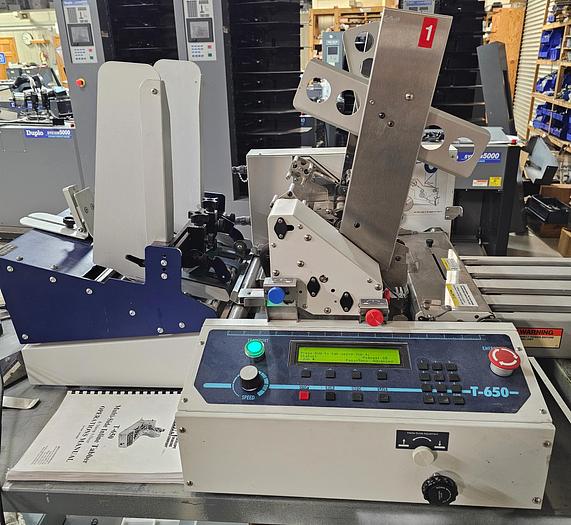

Rena T-650 Multi-Side Inline Tabber

Serial #2257


Serial Number2257
Stock Number3094
Tab MaterialsClear, Translucent, or Paper
Tabbing Speed Single Tab: Up to 25,000 pieces per hour, Double Tab: Up to 15,000 pieces per hour, Triple Tab: Up to 10,000 pieces per hour (11” min. piece length)
Material SizeMinimum 5" W x 3.5" L Maximum 11" W x 15" L
Material ThicknessUp to 1/4”
FeederIn-line design works with various input devices
Tab SizeMin: 3/4” x 3/4” Max: 1.5” x 1.5”
Tab SensitivityAdjusts for density in tab/wafer seals
Reel Capacity9” Diameter (3” core)
Number Of Tabs1, 2, or 3 Tabs/Stamps/Scratch-offs
Tab Accuracy+/- 1/16”

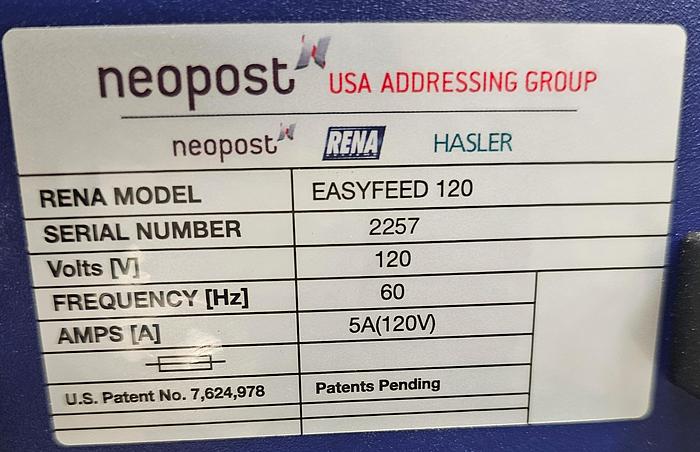

Feeder ControlStart/Stop Control for RENA Systems Feeders

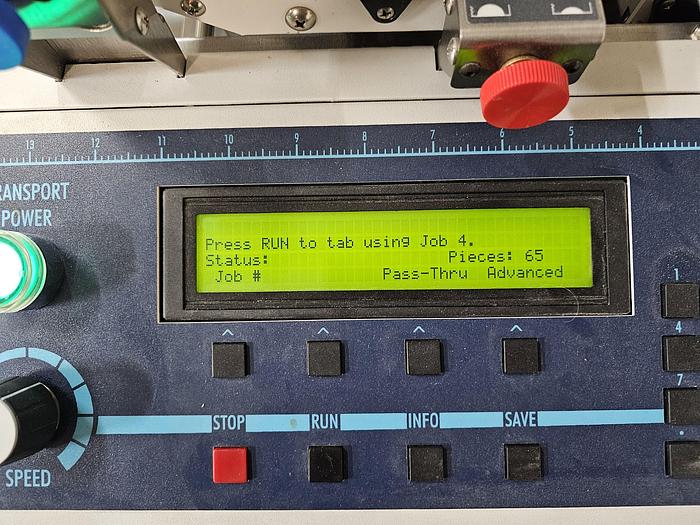

Production MonitorsLife and Job Count and Production rate and speed
FeaturesCan apply up to three tabs/stamps
Duty Cycle30 million addresses total or 500,000 per month over a 5-year life cycle
Dimensions19” W x 26” H x 30” D Weight: 75 lbs.
Electrical110VAC 50/60 Hz
Unique id20242006DNC2257
