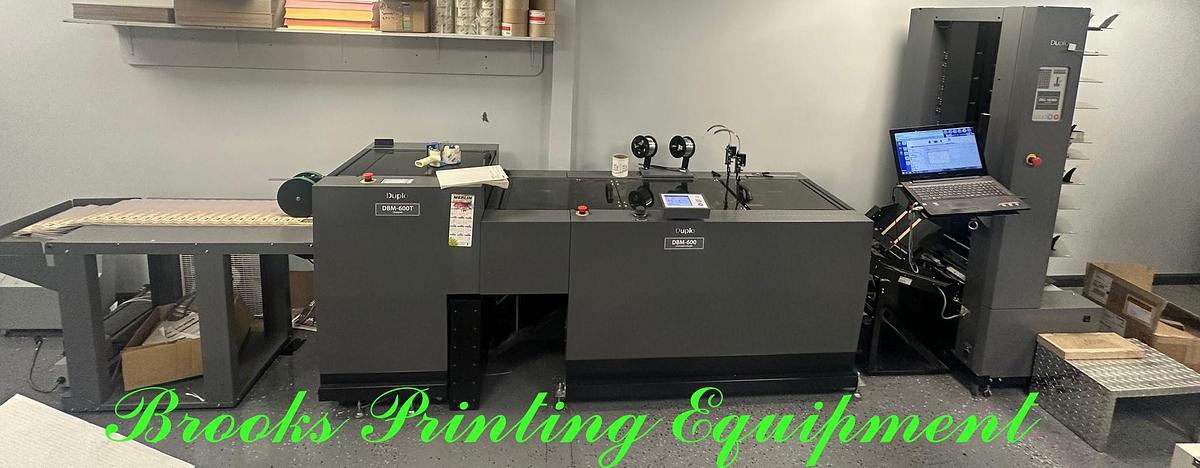

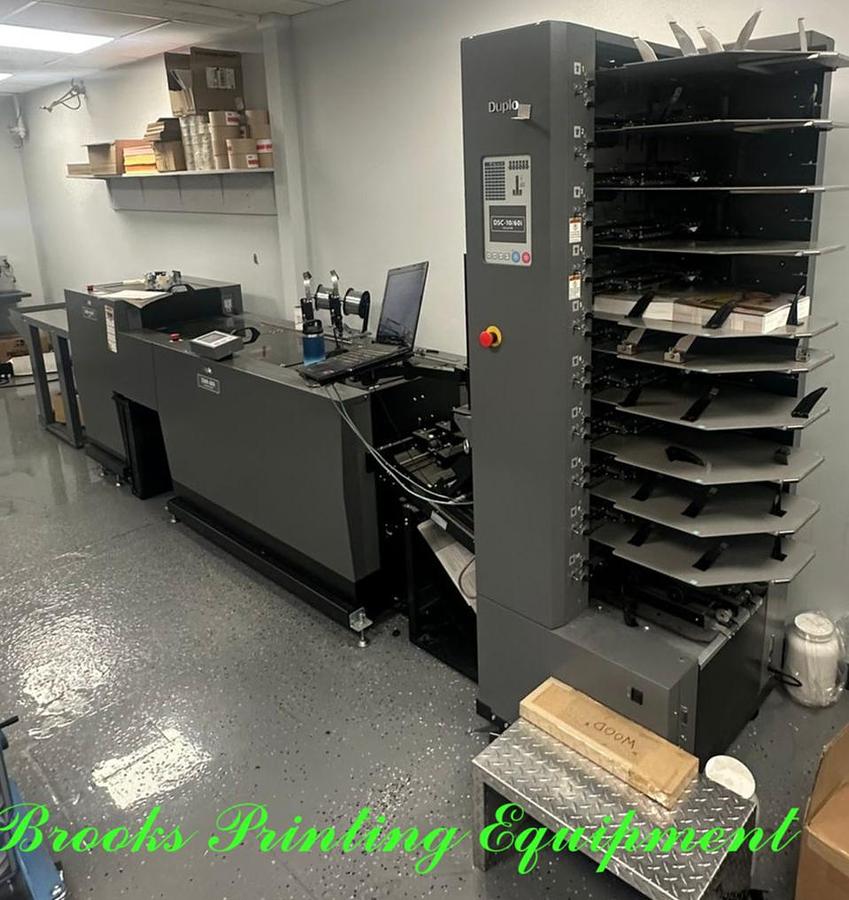

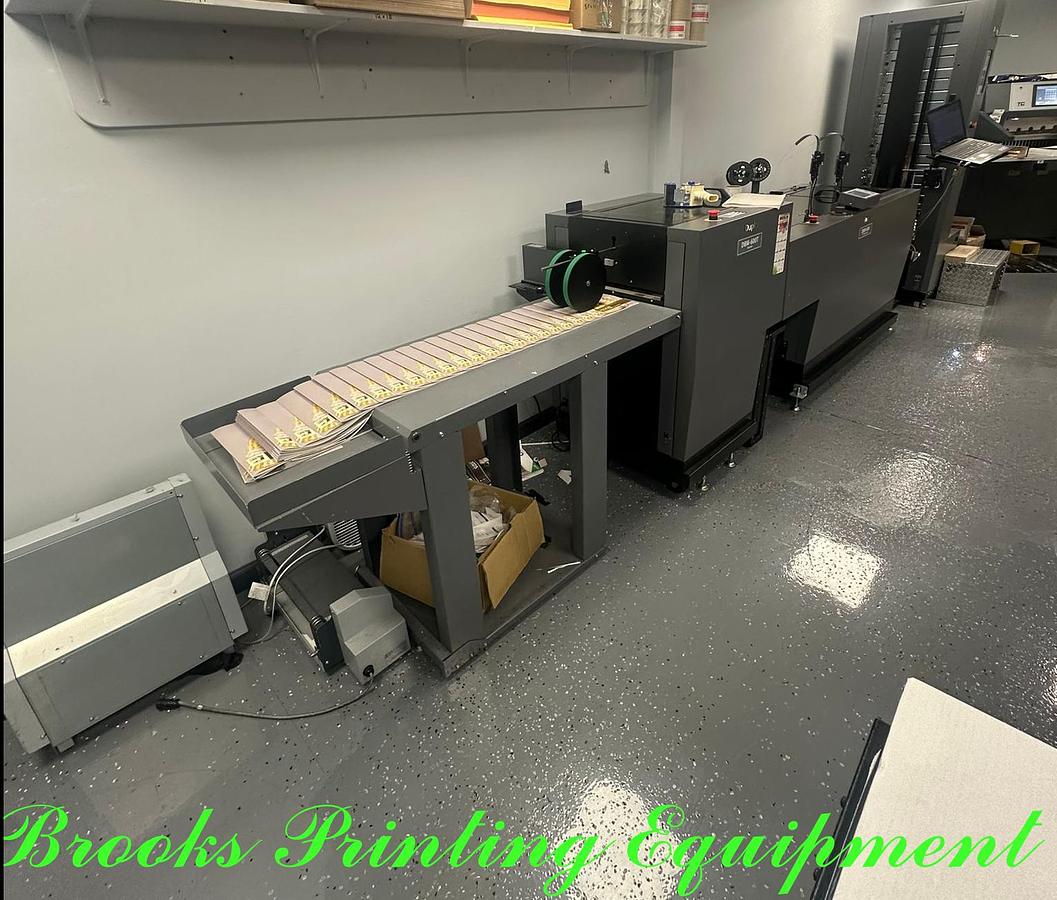

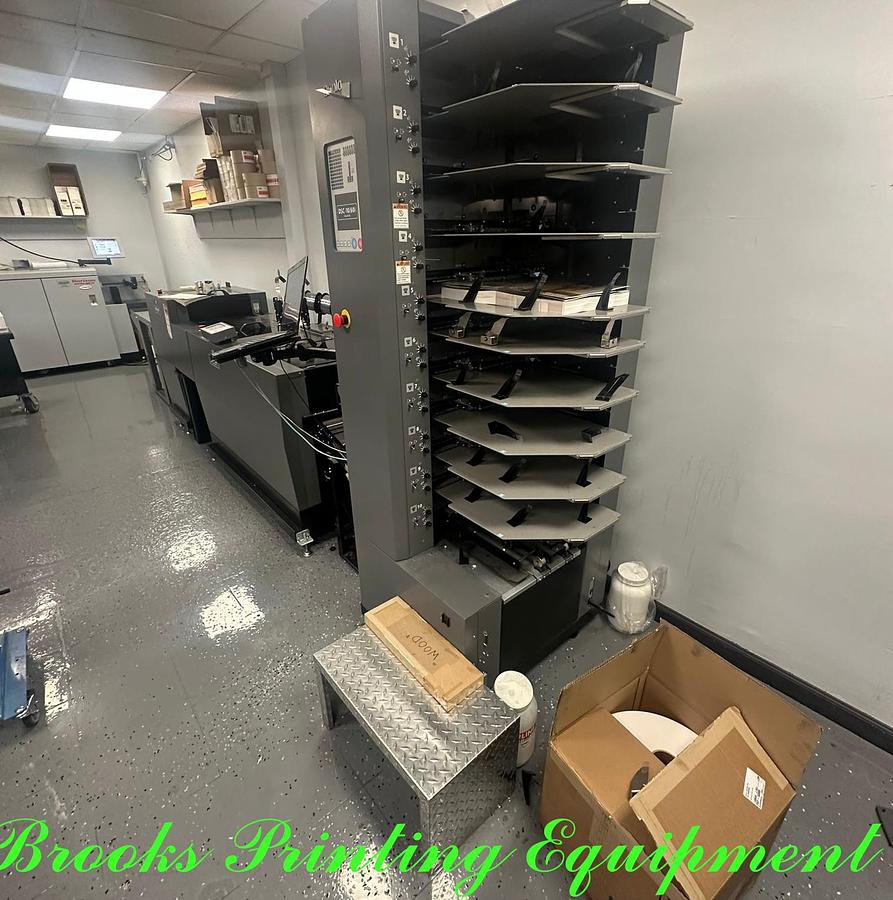

Duplo 600i with 1 Tower, 2015 Video
No longer available
Duplo 600i with 1 Tower, 2015 Video
$75,000 (USD)
Description
Duplo 600i Booklet System, 2015
Book Count: 1.1 million
Serial #150500568
Specifications
| Manufacturer | Duplo |
| Model | 600i |
| Year | 2015 |
| Condition | Used |
| Serial Number | 150500568 |
| Stock Number | 3199 |
| Features | Automated job set up and changeovers, 10-bin feeding per tower with dual fan technology, Custom feed jobs via Intelligent Multi-Bin Feed, Two-up applications with two knife trimmer and 4-stitch head option |
| Key Applications | Promotional calendars, Letter landscape catalogs, CD-size booklets, Half letter-size brochures, Marketing collateral with spot UV covers |
| Speed | Up to 5200 booklets per hour |
| Maximum Number of Bins | 60 (Six DSC-10/60i towers) |
| Input Paper Size | 4.72" x 8.27" to 14.01" x 24.01" |
| Paper Weight | Art coated paper 79 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm |
| Number of Sheets | Up to 30 sheets (saddle stitch), up to 50 sheets (side or corner stitch) |
| Maximum Sheet Size | 13.77" W x 20" L |
| Minimum Sheet Size | 4.13" W x 6.69" L |
| Folding Capacity | Up to 30 sheets (Thickness: 0.11”/ 3.0mm) |
| Stitching Capacity | Up to 50 sheets (Thickness: 0.19”/5.0mm) |
| Stitch Positions | Saddle, Corner, Side, Fold Only, Side Stitch and Fold |
| Programmable Memory Settings | 20 |
| Electrical | 120V 60Hz 4.5A |
| Dimensions | 73" L x 37" W x 51" H |
| Weight | 831 lbs. |
| DBM 600-T Specifications | Trimmer |
| In-feed Booklet Size | 4.13” W x 3.35” L to 14.33" W x 12.6" L |
| Finished Booklet Size | 4.13” W x 2.95” L to 14.33” W x 11.96” L |
| Trim Width | 0.04”/ 1mm to 0.98”/ 25mm (2.95” with 12 sheets or less) |
| Trimming Capacity | 30 folded sheets of fine quality 80 gsm paper, equivalent to 60 sheets (Thickness: 0.23”/6.0mm) |
| Electrical | 120V 60Hz 6.5A |
| Dimensions | 28" L x 28" W x 44" H |
| Weight | 514 lbs. |
| DSC-10/60i Collator Specifications | Collator |
| Number of Bins | 10, 20, 30, 40, 50, 60 (10 bins per tower |
| Paper Size | Width: 4.1” - 14” Length: 5.8” - 24” |
| Paper Weight | Fine quality paper: 52 - 157gsm (Cover: 52 - 300 gsm) Art coated paper: 79 - 157gsm (Cover: 79 - 300 gsm) |
| Bin Capacity | 2.6" |
| Speed | Bookletmaking: Up to 5,200 sets/hour Stacking: Up to 10,000 sets per hour |
| Controller | PC Controller w/IMBF or Color Touch Screen LCD Control Panel |
| Electrical | 120V 60Hz 7.9 - 8.4A 910 - 960W |
| Dimensions | 34" W x 33" D x 78" H |
| Weight | 674 lbs. |
| Unique id | 20252205DNC150500568 |
