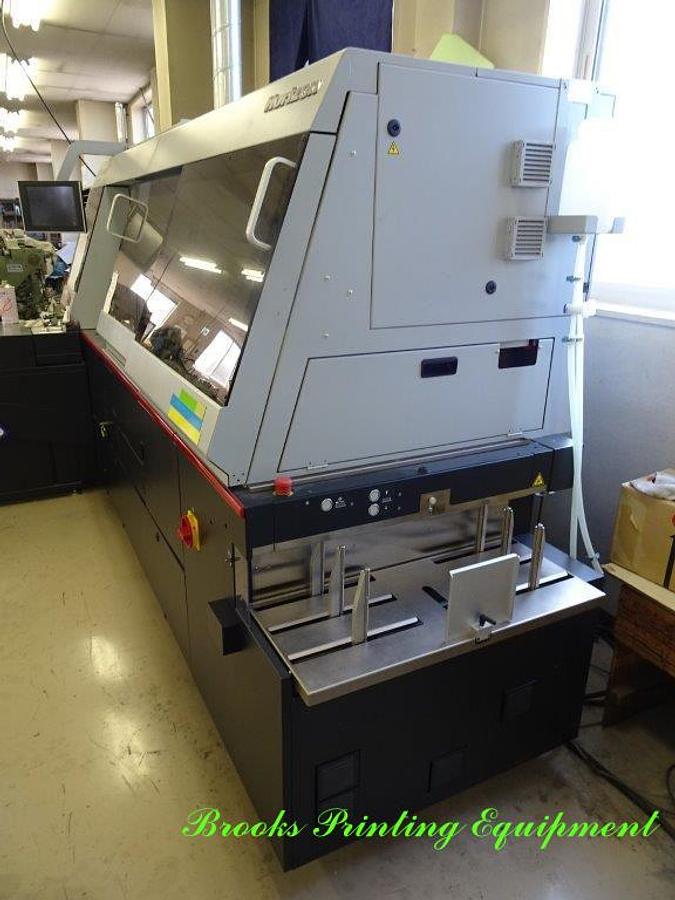

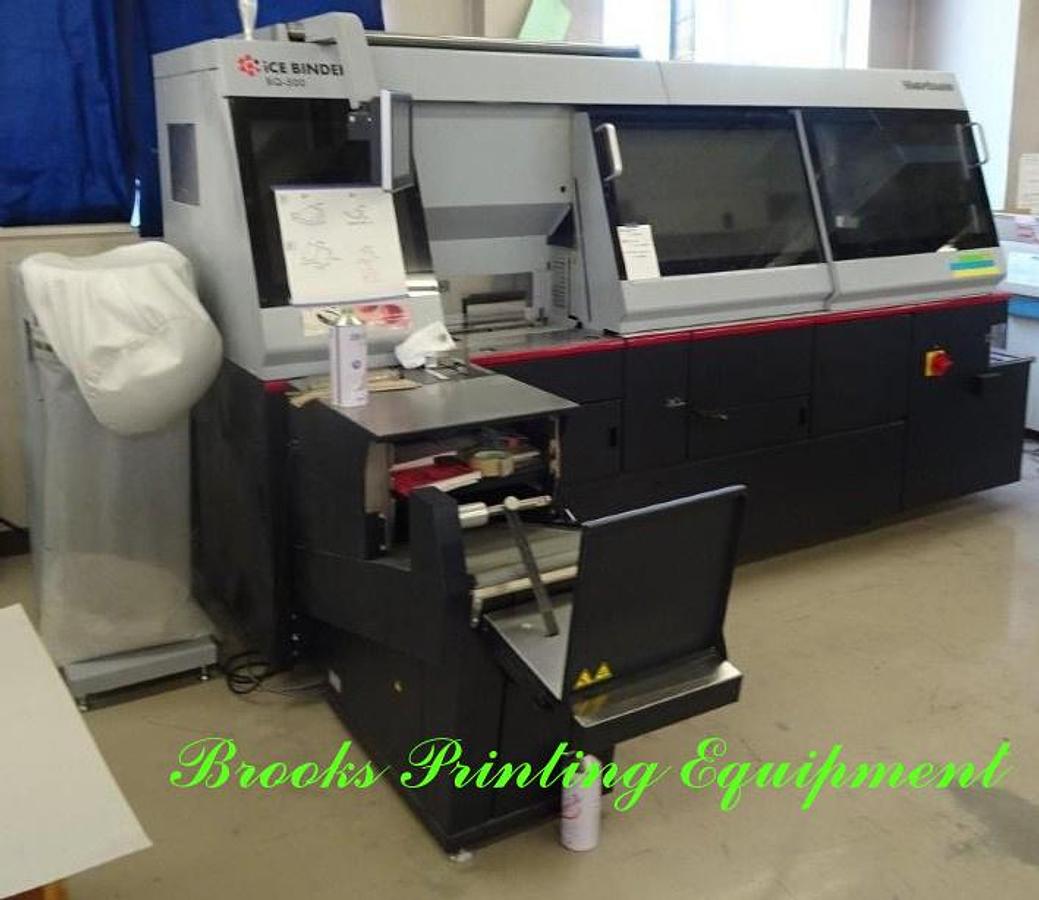

Horizon BQ500 EVA or PUR Perfect Binder, 2021
Horizon BQ500 EVA or PUR Perfect Binder, 2021
$178,000 (USD)
Description
Horizon BQ500 EVA or PUR Perfect Binder, 2021
Serial #001007

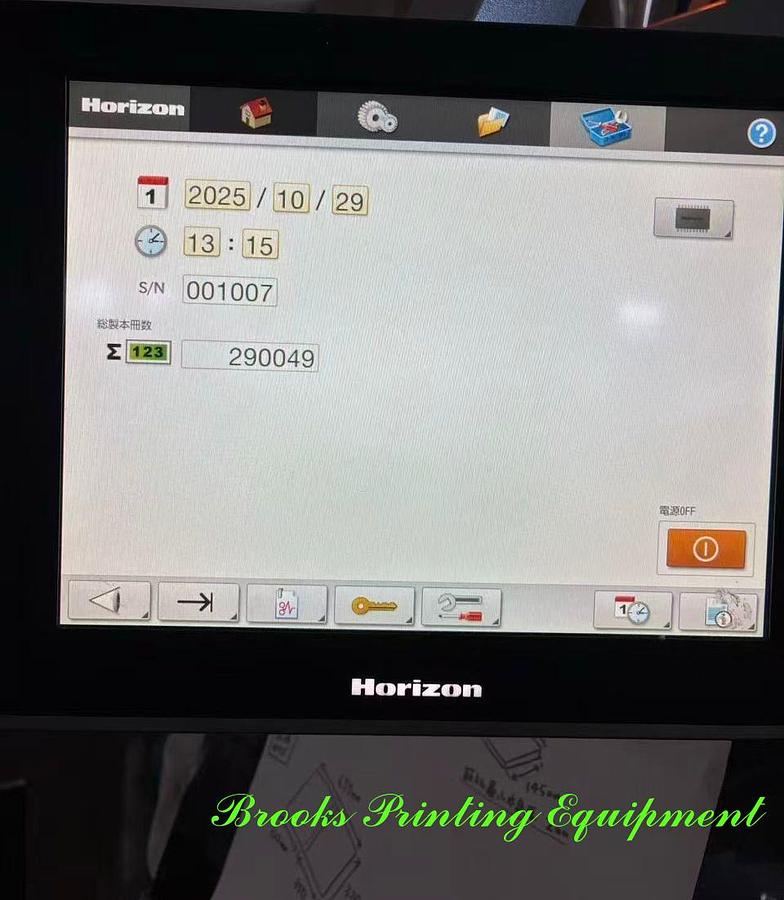

Book Count: 290,049
Specifications
| Manufacturer | Horizon |
| Model | BQ500 |
| Year | 2021 |
| Condition | Used |
| Serial Number | 001007 |
| Stock Number | 3268 |
| Binding Type | Binding with milling, Binding without milling and Pad binding |
| Glue Type | EVA Glue or PUR Glue |
| Number of Carriage Clamps | 4 |
| Book Block Size Spine Length x Fore-edge Length | Max. 12.59” x 12.59” Min. 5.71” x 4.14” |
| Book Block Thickness | Min. 0.04" Max. 2.56" |
| Cover Size Length x Width | Max. 12.59” x 26.37” Min. 5.32” x 8.86” |
| Cover Weight Range | Normal Paper 81.4 to 302.4 gsm Coated Paper 104.7 to 348.9 gsm |
| Cover Stack Height | Max. 5.9" |
| Cycle Speed Cover Binding (EVA) glue | Max. 1,350 cycles per hour (EVA) |
| Cycle Speed Cover Binding (PUR) glue | Max. 1,000 cycles per hour (PUR) |
| Cycle Speed Pad Binding | Based on cover binding (The glue temperature diff ers depending on conditions) |
| Cycle Speed Lining Binding | Max. 900 cycles per hour |
| Cycle Speed Variable Binding | Max. 810 cycles per hour (when diff erence in thickness is 5 mm or less) (You will need the optional SI-500A Book Thickness Input Caliper for this function.) |
| Voltage/Frequency | 3-phase 200-208 V, 60 Hz; 3-phase 220 V, 50 or 60 Hz; 3-phase 400 V, 50 or 60 Hz; (An external transformer is necessary for 220 V or 400 V) |
| Dimensions Delivery Conveyor | (long type), and milling blower duct: 3,670 (W) × 2,340 (D) × 1,840 mm (H) (+ pole lamp 215 mm) or 144.5” (W) x 92.2” (D) x 72.5”(H) (+ pole lamp 8.5”) |
| Dimensions delivery stacker and milling blower duct | delivery stacker and milling blower duct |
| Unique id | 20250511DNC001007 |
