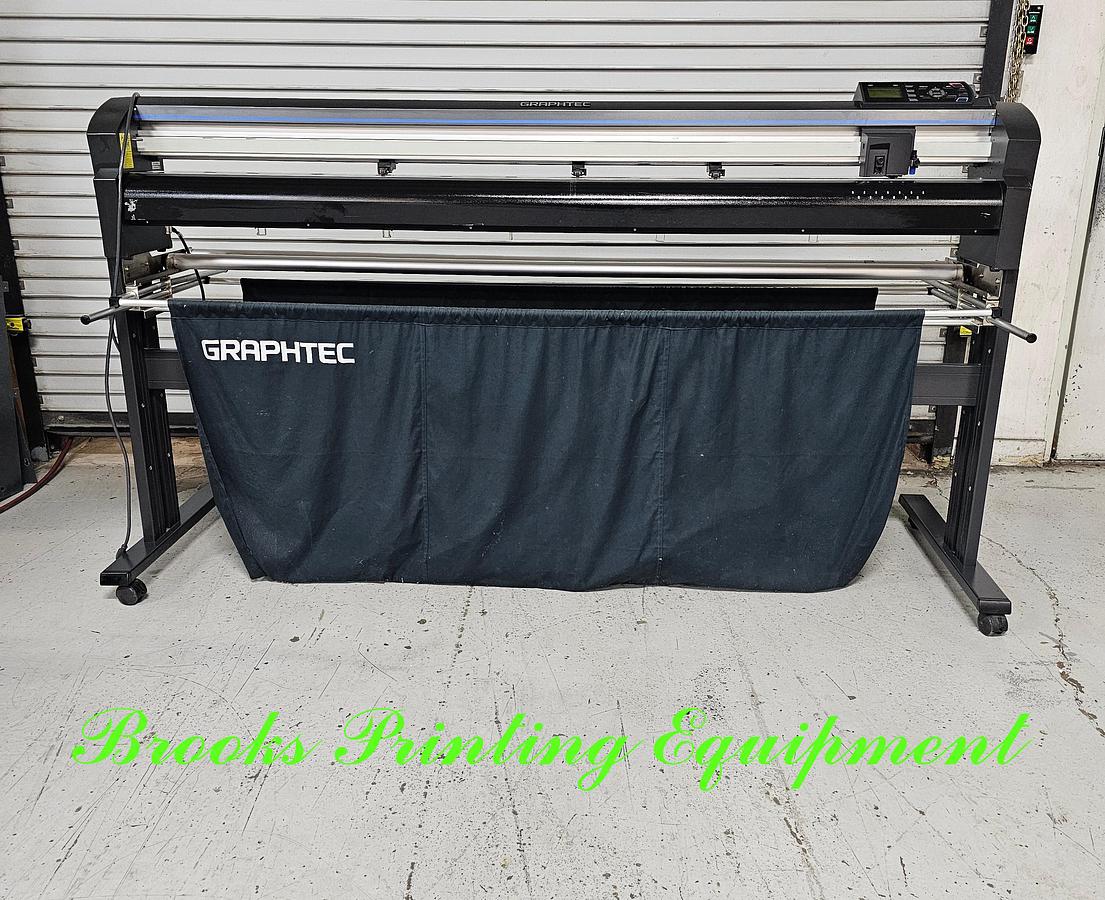

Graphtec FC 8600-160 64" Plotter, 2013
Graphtec FC 8600-160 64" Plotter, 2013
$4,000 (USD)
Description
Graphtec FC 8600-160 64" Plotter, 2013
Serial #PN62163456X
Specifications
| Manufacturer | Graphtec Corporation |
| Model | FC 8600-160 |
| Year | 2013 |
| Condition | Used |
| Serial Number | PN62163456X |
| Stock Number | 3345 |
| Max. cutting speed | 1485 mm/s at 45° direction |
| Axial acceleration | Max. 39.2 m/s2 (4 G) in 8 steps |
| Cutting force | Max. 5.88 N (600 gf) in 48 steps |
| Mechanical resolution | 0.005 mm |
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm |
| Distance accuracy | Max. 0.1 mm or 0.1 % of plotted length |
| Repeatability | Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media) |
| Minimum character size | Approx. 3 mm alphanumeric (varies depending on character font and media |
| Mountable number of tools | 1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed |
| Blade types | Supersteel (0.9 mm or 1.5 mm diameter) |
| Pen types | Water-based fiber-tip pen, Oil-based ballpoint pen |
| Media types | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick |
| Light pointer | Built into the tool carriage |
| Cross-cutter | Built into the tool carriage |
| Perforation cutting | Supported (performed by force control) |
| Registration mark sensing system | Scans the mark by optical sensor (ARMS5.0), Segment area and Multiple-mark compensation, 4-points axis alignment, Auto mark detect |
| Standard interface | USB2.0 (High speed), RS-232C, and Ethernet (10BASE-T/100BASE-TX) |
| Buffer memory | 2MB |
| Command sets | GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select) |
| Condition settings | Dual configuration (save two (2) user settings with eight (8) separate condition setting for each user) |
| Display | Graphic type LCD (3-inch, backlight) |
| Max. cutting area | 1372 mm W x 50 m L |
| Mountable media width | Min. 50 mm (Max. 1529 mm) |
| Max. cross cut width | 1496mm |
| Number of push rollers | 3 Rollers |

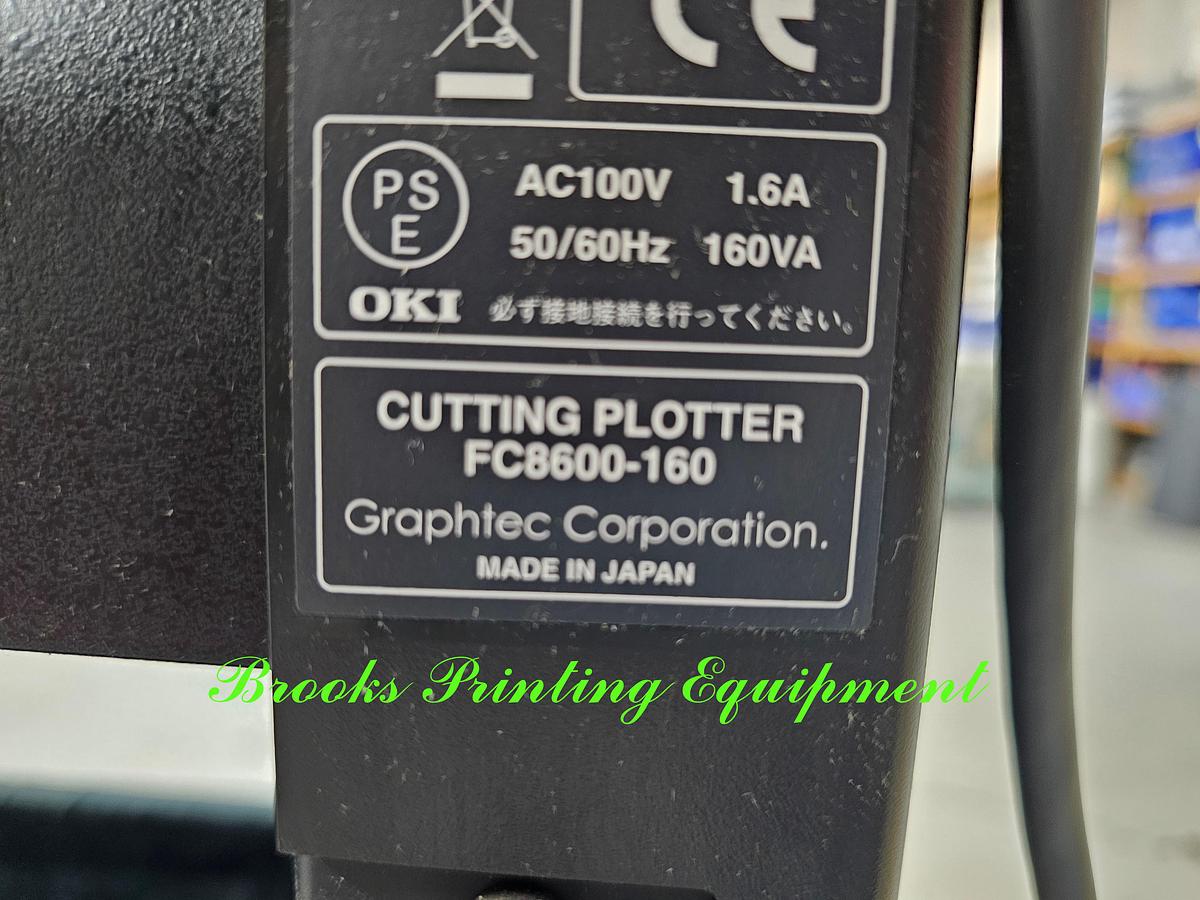

| Electrical | 100 V to 240 V AC, 50 / 60 Hz |
| Unique id | 20260503DNCPN62163456X |
