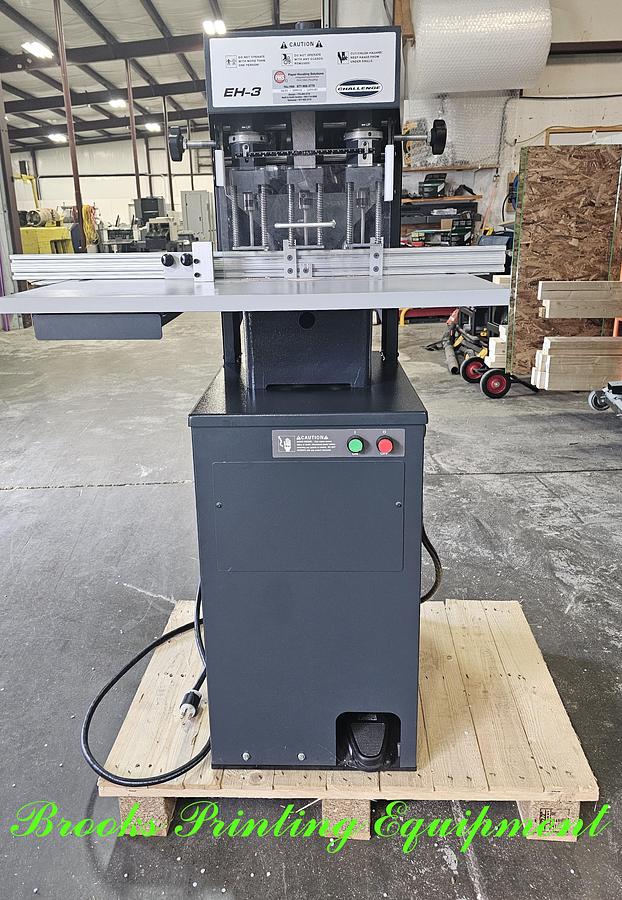

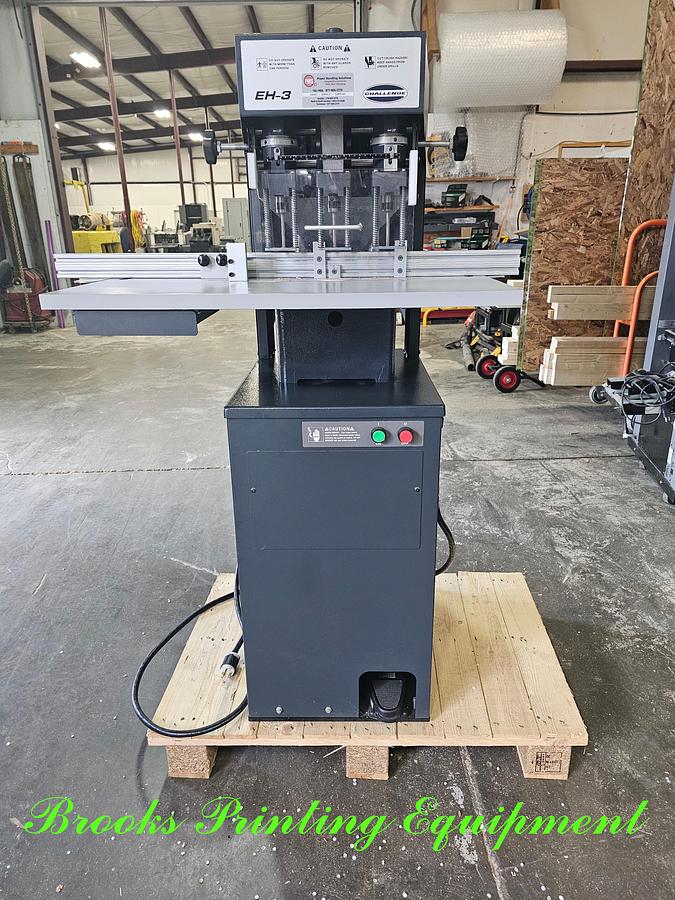

Challenge EH3-D Paper Drill, 2017
Challenge EH3-D Paper Drill, 2017
$6,500 (USD)
Description
Challenge EH3-D Paper Drill, 2017

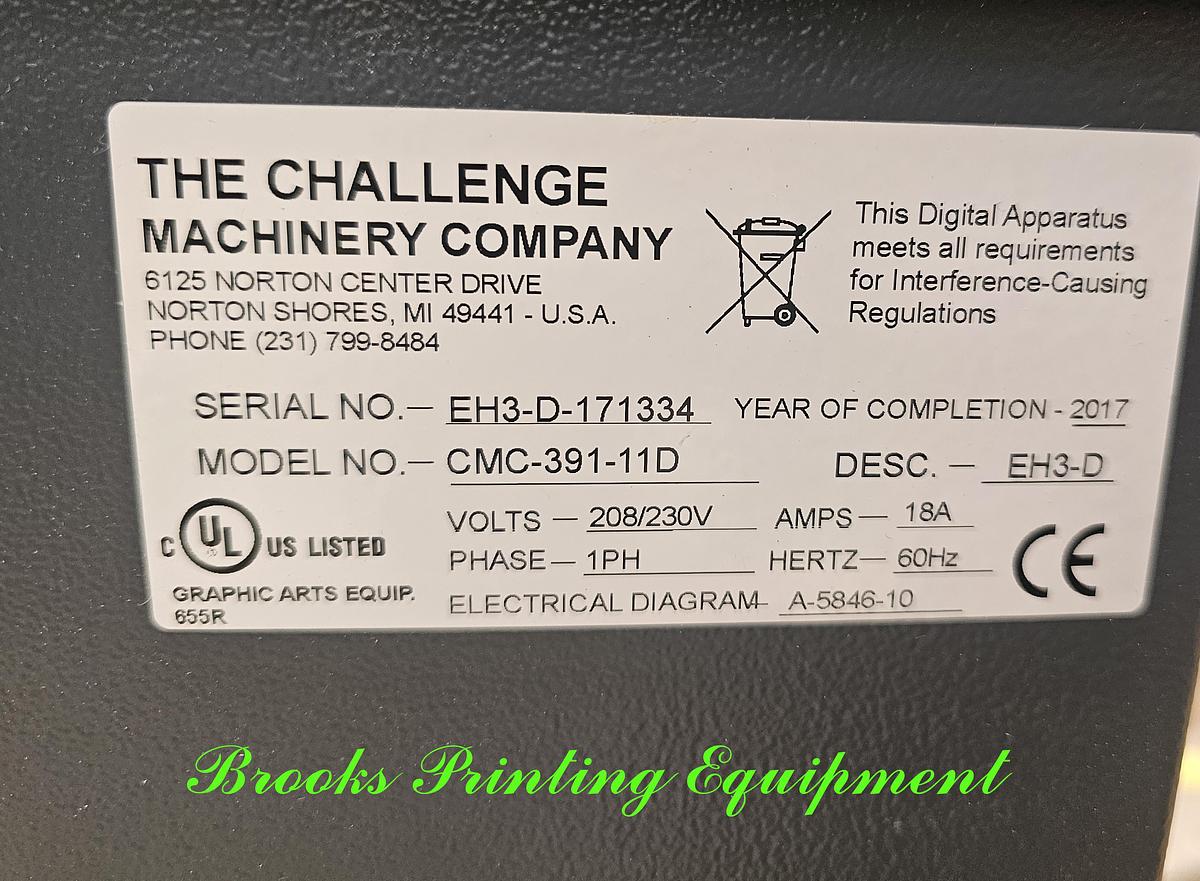

Serial #EH3-D-171334
Specifications
| Model | CMC-391-11D |
| Year | 2017 |
| Condition | Used |
| Serial Number | EH3-D-171334 |
| Stock Number | 3356 |

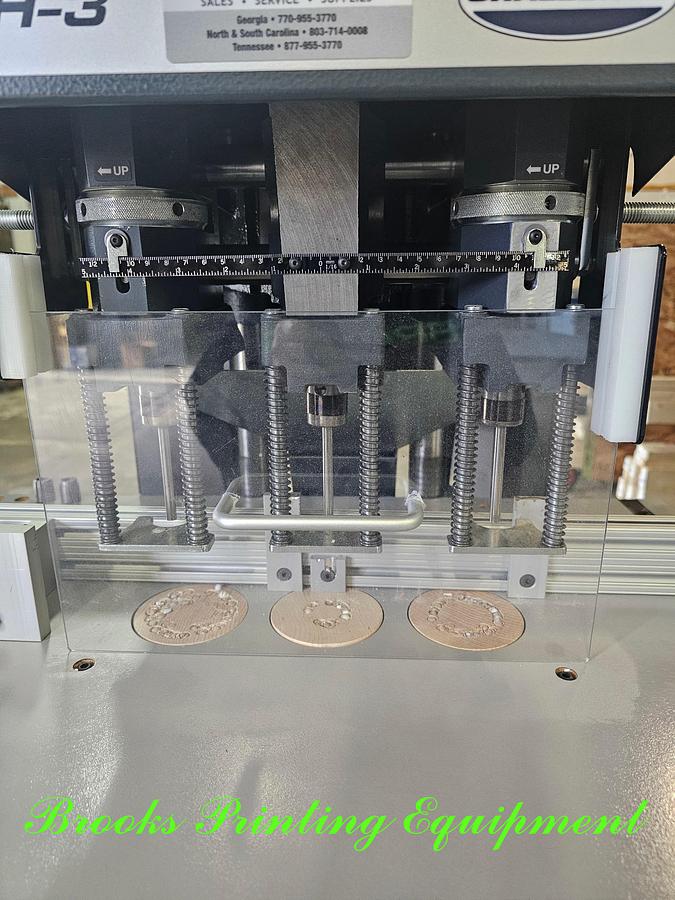

| Drill Sizes Available (2" capacity) | 1/8" to 1/2" |
| Drill Sizes Available (2-1/2" capacity) | 1/4" to 1/2" |
| Range Between Drills | 2-3/4" to 4-1/2" |
| Range Between Outside Drills | 5-1/2" to 9" |
| Maximum Drilling Capacity | 2-1/2" |
| Strokes per Minute (adjustable) | Up to 18 |
| Backgauge Adjustment | 0 to 4-1/2" |
| Vertical Adjustment of Individual Heads | 1/4" |
| Dimensions | Table Size: 19-1/2" x 31-1/2" |
| Table Height | 37" |
| Overall Height | 59-1/4" |
| Floor Space Needed | 36" x 41-1/2" |
| Weight | 520 lbs. |
| Electrical | Motor Type Hydaulic Motor |
| Base Power | 1 Phase, 60 Hz, AC. Pump: 1/2 H.P. Spindle Motor: 1 H.P. |
| Power option 1 | 208 Volt, 18 Amps (Recommended service size: 30 Amps) |
| Power option 2 | 230 Volt, 17 Amps (Recommended service size: 30 Amps) |
| Unique id | 20262403DNCEH3-D-171334 |
