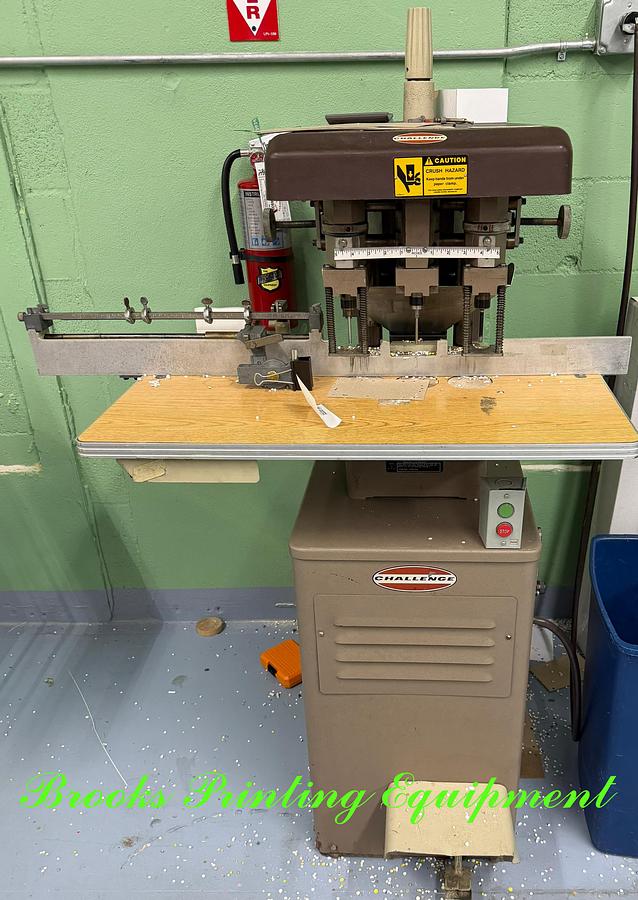

Challenge EH-3A Paper Drill
Challenge EH-3A Paper Drill
$2,500 (USD)
Description
Challenge EH-3A 3 Hole Drill
Serial #66404
Specifications
| Manufacturer | Challenge |
| Model | EH-3A |
| Condition | Used |
| Serial Number | 66404 |
| Stock Number | 3387 |
| Number of Drill Heads | 3 |
| Range Between Drills | 2 3/4" to 4 1/2" |
| Range Between Outside Drills | 5 1/2" to 9" |
| Maximum Drilling Capacity | 2 1/2"Strokes Per Minute (adjustable): Up to 18 |
| Backgauge Adjustment | 0 to 4 1/2"Vertical |
| Adjustment of Individual Heads | 1/4" |
| Table Size | 19 1/2" x 31 1/2" |
| Table Height | 37" |
| Overall Height | 59 1/4" |
| Floor Space Needed | 36" x 41 1/2" |
| Net Weight (approximate) | 520 lbs. |
| Spindle Motor | 208-230V/18 amps/60 Hz/ AC Single Phase |
| Unique id | 20260405DNC66404 |
