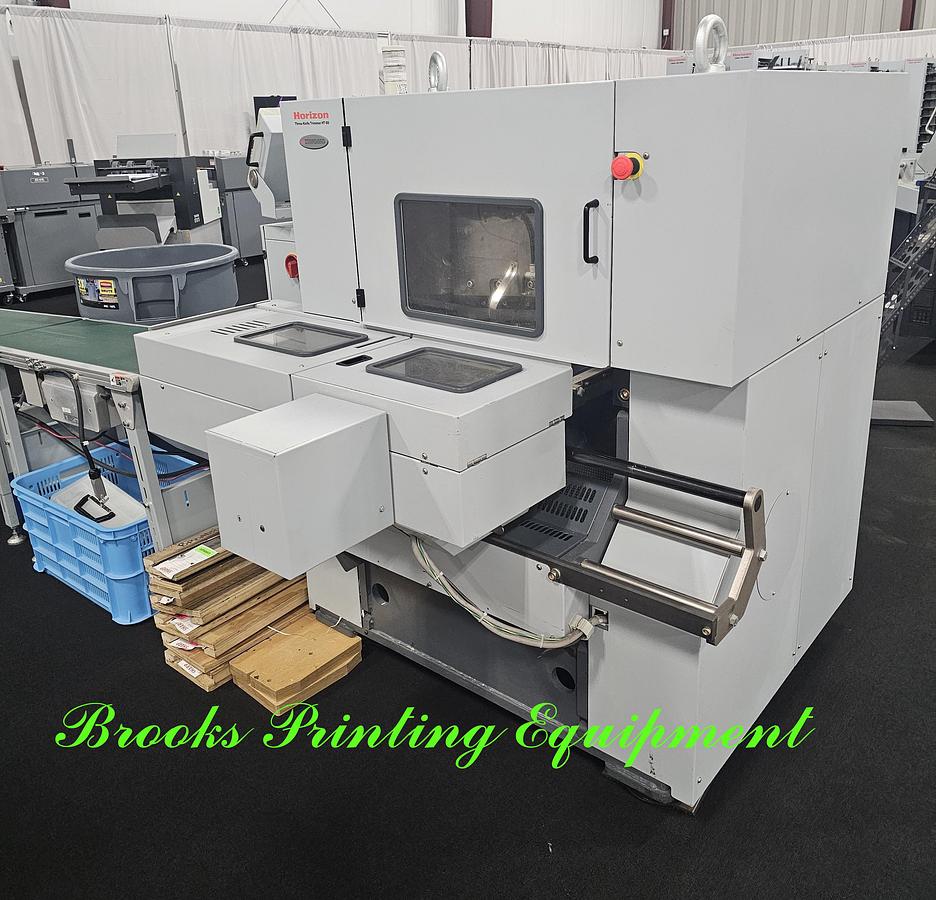

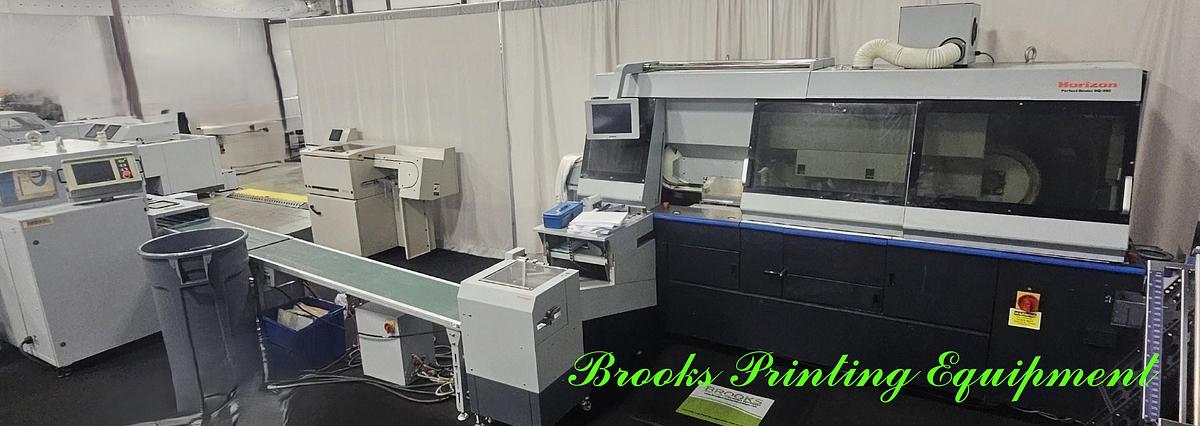

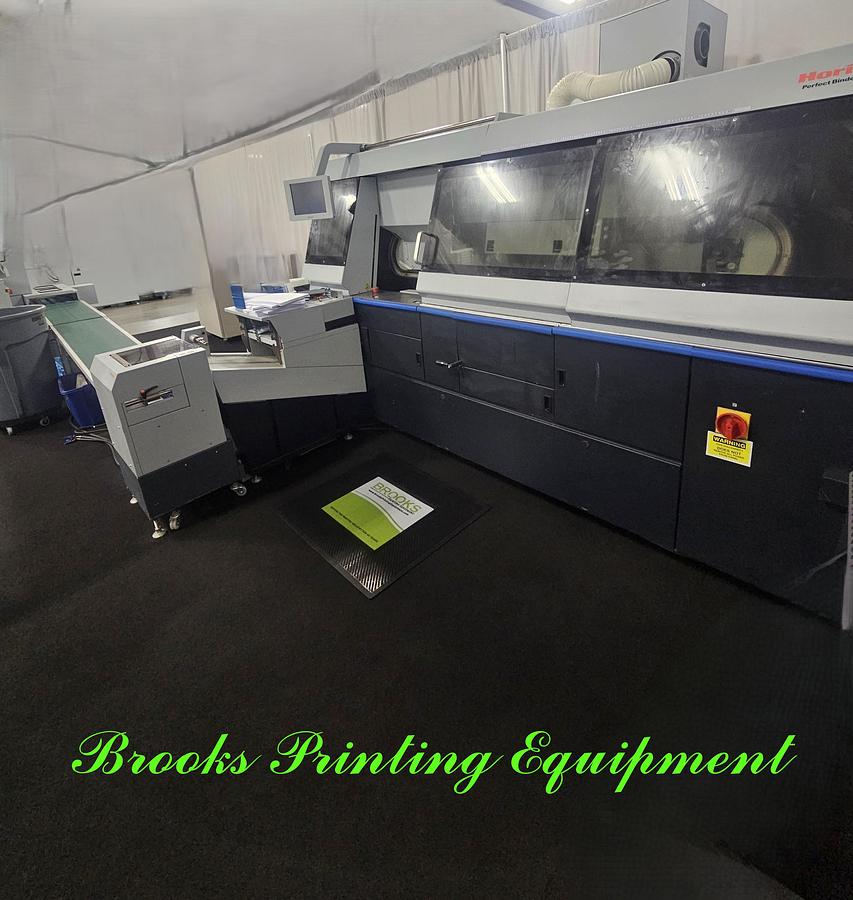

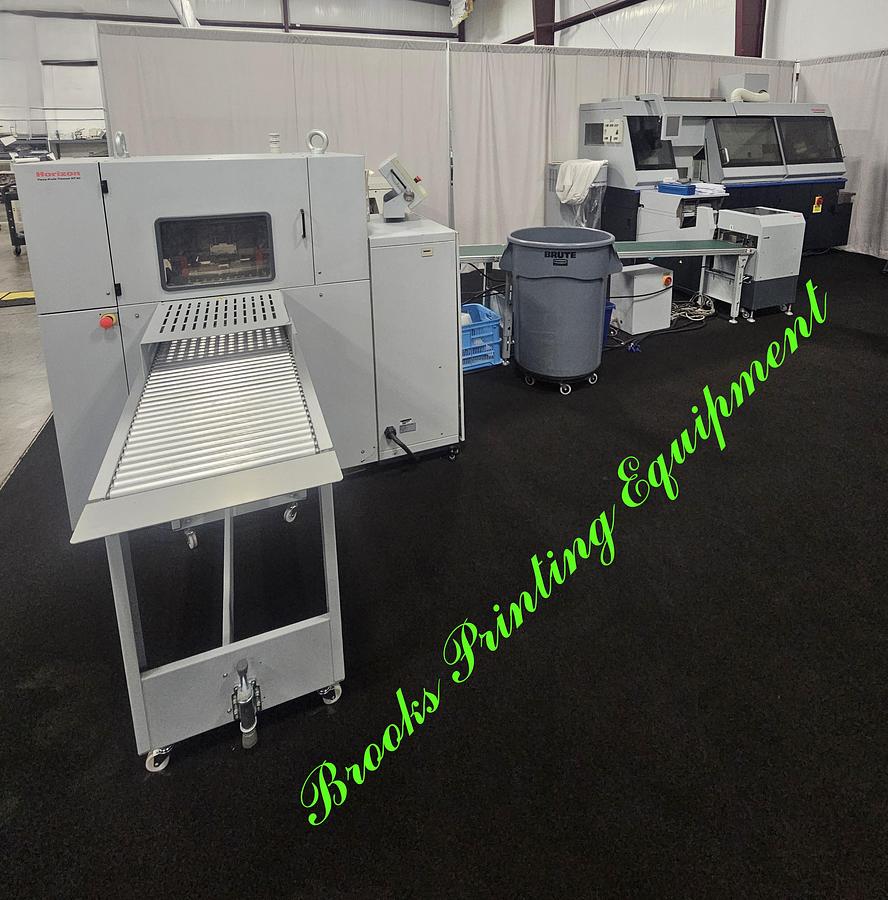

Horizon BQ 480 with Inline HT-80, 2018
Horizon BQ 480 with Inline HT-80, 2018
$360,000 (USD)
Description
Horizon BQ 480 with Inline HT-80, 2018
Specifications
| Manufacturer | Horizon |
| Model | BQ 480 with HT-80 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 3408 |
| BQ 480 Binding Mode | Binding with milling, Binding without milling and Pad binding |
| Number of Clamps | 4 |
| Book Thickness | 0.040” to 2.560” |
| Cover Weight Range | Bond Paper 81.4 to 302.4 gsm / Coated Paper 104.7 to 348.9 gsm |
| Cycle Speed | Max. 1,350 cycles per hour (EVA) |
| Electrical | 200V AC 3Phase 18A |
| HT-80 Specifications | Untrimmed Book Size Max. 13" x 13" Min. 5.71" x 4.135" |
| Trimmed Book Size | Max. 11.81" x 11.81" Min. 5.475" x 3.9 |
| Standard Size Trimmed by Standard Accessory | A5 / A4 (8.5" x 5.5" / 11" x 8.5") |
| Trimmings Width | Top-bottom Max. 1.18" Fore-edge Max. 1.18" |
| Trim Thickness | 0.04" to 2" |
| Clamp and Pressure | Servo Motor 4 kN to 8 kN (10 kN depending on Condition) |
| Production Speed | 400 to 1,000 cycles/hour |
| Dimensions | 63.4" W x 102.8" D x 59.7" H |
| HT-80 Electrical | 200 to 220 V 3 Phase |
| Unique id | 20261809DNC09182026 |
