Nordson DuraPail Melter, 2016 Video
Nordson DuraPail Melter, 2016 Video
$9,000 (USD)
Description
Nordson DuraPail Melter, 2016

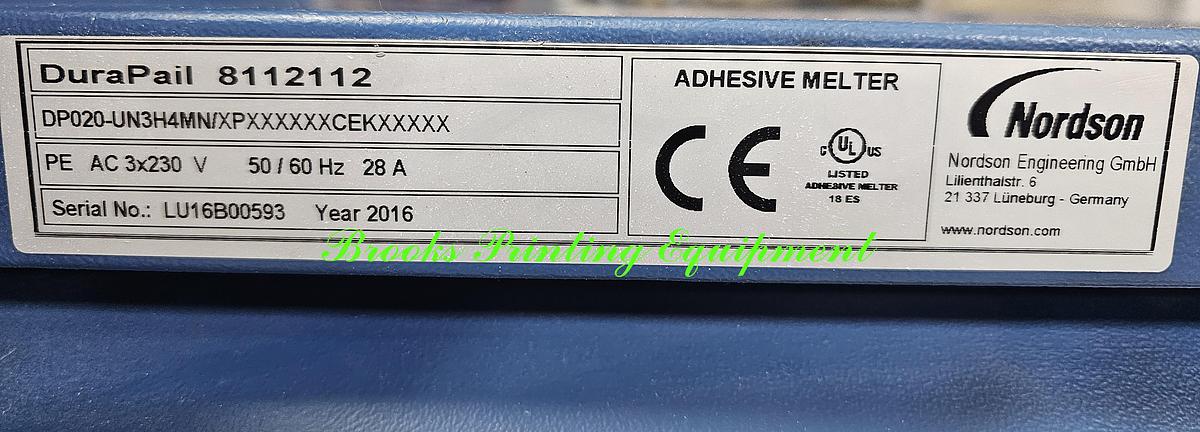

Serial #LU16B00593
Specifications
| Manufacturer | Nordson |
| Year | 2016 |
| Condition | Used |
| Serial Number | LU16B00593 |
| Stock Number | 3410 |
| Type of System | Gerotor or gear pump with preset fixed speed AC motor |
| Pail Diameter | 11" |
| Maximum Pump Rate | 203 lb/hr |
| Maximum Working Hydraulic Pressure | 1500 psi |
| Operating Temperature Range | 100 to 450°F |
| Ambient Temperature Range | 23 to 122° F |
| Temperature Control Stability | 2°F |
| Temperature Sensor | Ni 120 |
| Electrical | 200 VAC 3 phase delta 50/60 Hz, 240 VAC 3 phase delta 50/60 Hz, |
| Maximum System Power Capacity | 9100 watts |
| Weight | 739 lbs. |
| Input/Output Capability Standard | 3 STD Outputs – programmable for function, 4 STD Inputs – programmable for function |
| Melter Dimension | 46.9" W x 75.6" H x 21.3" D |
| Protection | IP54 |
| Unique id | 20260610DNCLU16B00593 |
